Lab Pulverizer Mill DPM1000

Key Advantages

Processes mineral samples 95% to 75 microns in 3 minutes
Rapid and dust-free grinding with no sample loss
User-friendly operation and less maintenance

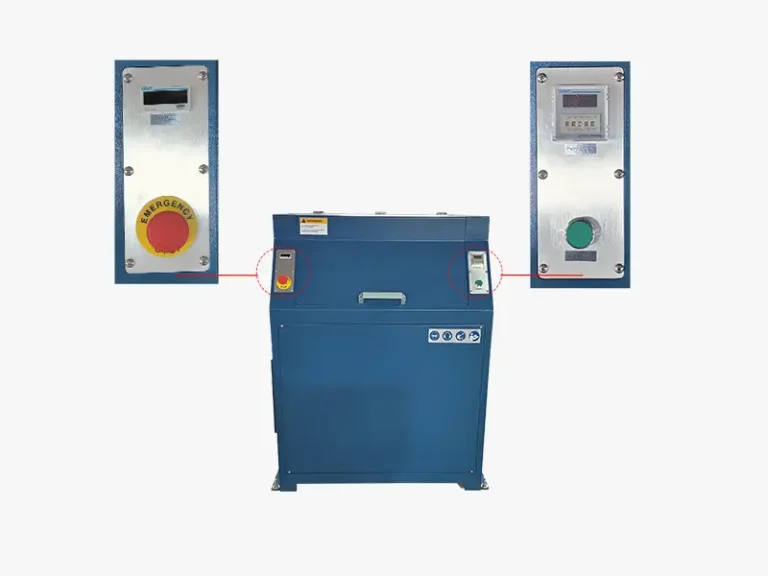

Manual clamping and safety interlocks
Compatible with 50 cc–1000 cc pulverizing bowls
Multi-voltage compatibility and industry-standardized performance

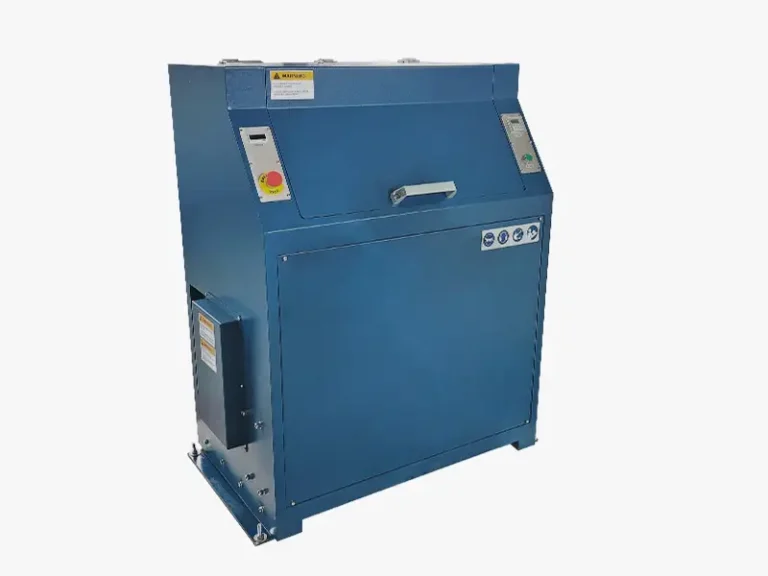

Lab Pulverizer Mill DPM1000

Pulverizer mills are critical equipment across a diverse range of industries, including mining and mineral processing, material science research, and laboratory analysis. These machines play a vital role in reducing the size of various materials to fine powders, a process essential for subsequent analysis, processing, or product formulation.

DECENT Lab Pulverizer Mill DPM1000 is a heavy-duty vibratory and manual clamping mill for rapid, dust-free grinding of hard ores, minerals, metallurgical samples, ceramics, soils, aggregates, chemicals, and similar particulates. Processes representative samples to 95% fineness below 75 microns in ~3 minutes. Features a robust motor and compatibility with 50 cc–1000 cc pulverizing bowls. Includes safety lid switch, emergency stop, and compact noise-suppressed design. Certified for global laboratories with multi-voltage support.

Chat Now

Equipment Construction

The manual clamp has a fast, secure bowl clamp design..
The lid integrates a safety lock.
The motor is positioned away from the electrical box.
Front/back/left/right panels are detachable.
Insulated steel housing enables easy access and noise suppression
Robust motor drives the universal shaft via V-belts, delivering enhanced crushing power to the pulverizing bowl.

Technical Parameters

Voltage	380-415V 50Hz 3phase	Grinding Capacity	40g-800g
Motor Power	2.2kW	Compatible Grinding Bowls	125cc, 300cc, 400cc, 800cc, 1000cc
Feed Size	≤20mm	Bowl Materials	Standard steel, Chrome steel, Tungsten carbide
Output Size	95% 75μm	Mill Net Weight	360kg
Timer Setting	1 second-99 hours	Mill Dimensions	1050mm x 1250mm x 725mm (LxHxW)
