Pulverizer mills are critical equipment across a diverse range of industries, including mining and mineral processing, material science research, and laboratory analysis. These machines play a vital role in reducing the size of various materials to fine powders, a process essential for subsequent analysis, processing, or product formulation.

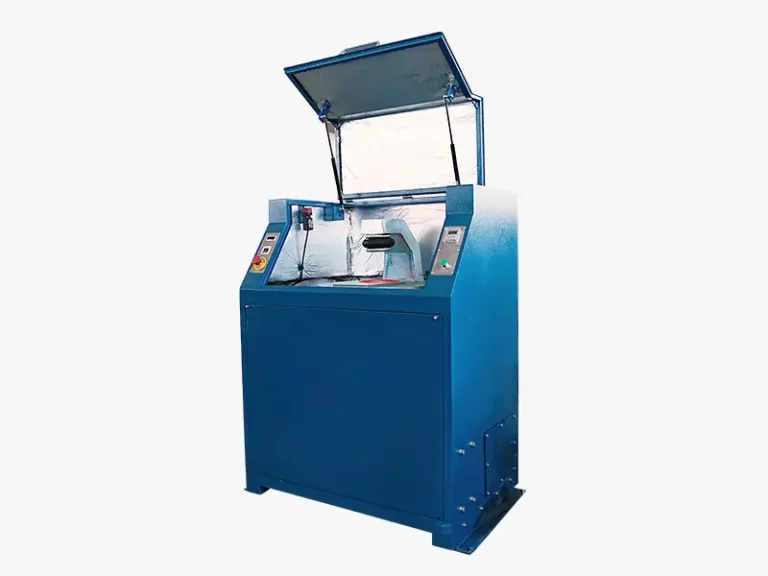

DECENT Lab Pulverizer Mill DP2000 is a heavy-duty vibratory mill for rapid, dust-free grinding of hard ores, minerals, and ceramics. Processes representative samples to 95% fineness below 75 microns in ~3 minutes. Features a robust motor, pneumatic bowl clamping, and compatibility with 50 cc–2000 cc pulverizing bowls. Includes safety lid switch, emergency stop, and compact noise-suppressed design. Certified for global laboratories with multi-voltage support.

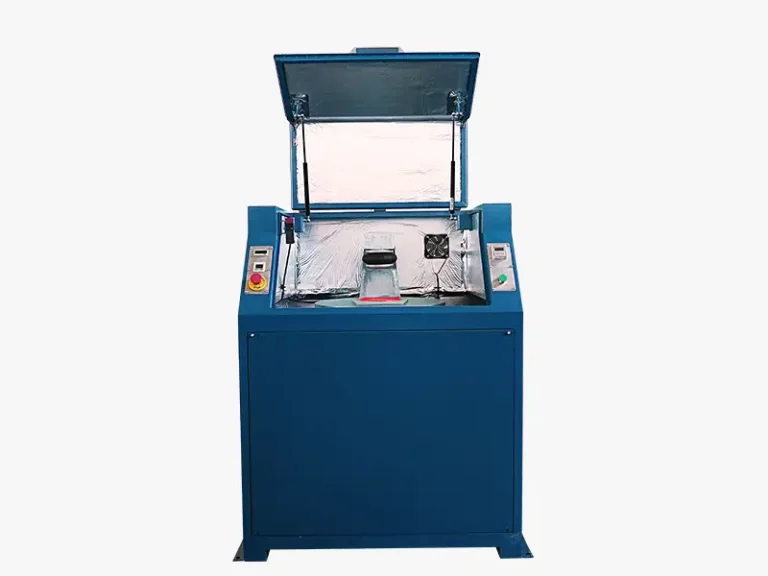

The lid integrates a safety lock and gas strut, with pneumatic/electric controls physically isolated. The motor is positioned away from the electrical box.
Bolt-on replaceable gooseneck and rapid-secure pneumatic airbag clamping system minimize manual effort.
Front/back/left/right panels detachable; insulated steel housing enables easy access and noise suppression.
Robust motor drives the universal shaft via V-belts, delivering enhanced crushing power to the pulverizing bowl.

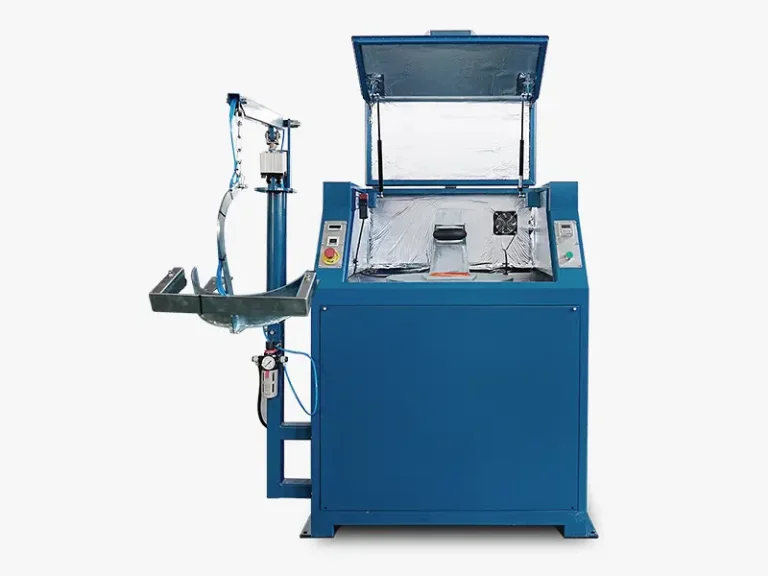

Bowl Jack mounts on either cabinet side, powered by a pneumatic cylinder to reduce manual workload.
| Voltage | 380-415V 50Hz 3phase | Compressed Air Requirements | 500 kPa to 600 kPa at 1L per minute maximum flow |
| Motor Power | 2.2kW | Compatible Pulverizing Bowls | 50cc, 100cc, 125cc, 300cc, 400cc, 800cc, 1000cc, 2000cc |
| Feed Size | ≤20mm | Bowl Materials | Standard steel, Chrome steel, Manganese steel, Tungsten steel (125cc only) |
| Output Size | 95% minus 75μm | Mill Net Weight | 360kg |
| Timer Setting | 1 second-60 hours | Mill Dimensions | 1180x1480x700mm |
| Grinding Capacity | 40g-1600g | Applications | ores, minerals, metallurgical samples, ceramics, soils, aggregates, chemicals, and similar particulate |
