Lab Hot Plates

Key Advantages

  • Rapid and even temperature rise
  • Robust and stable operation
  • The digital display heating plate
  • Meet various experimental needs

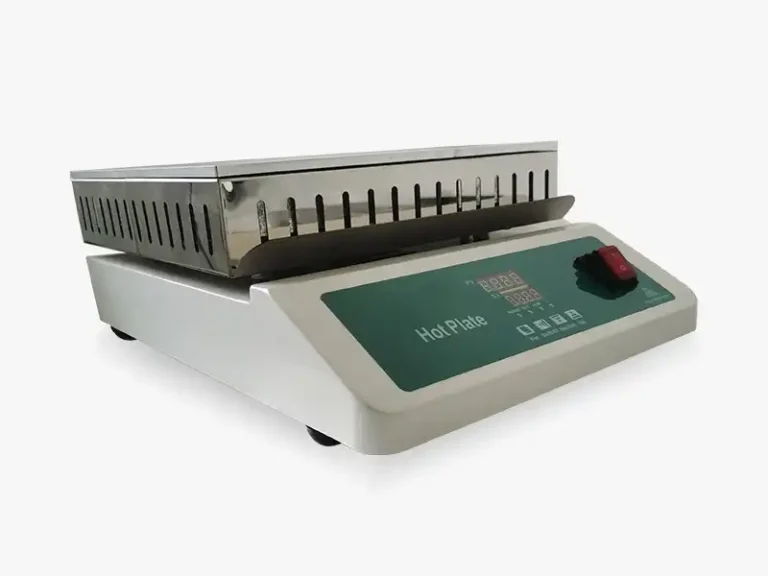

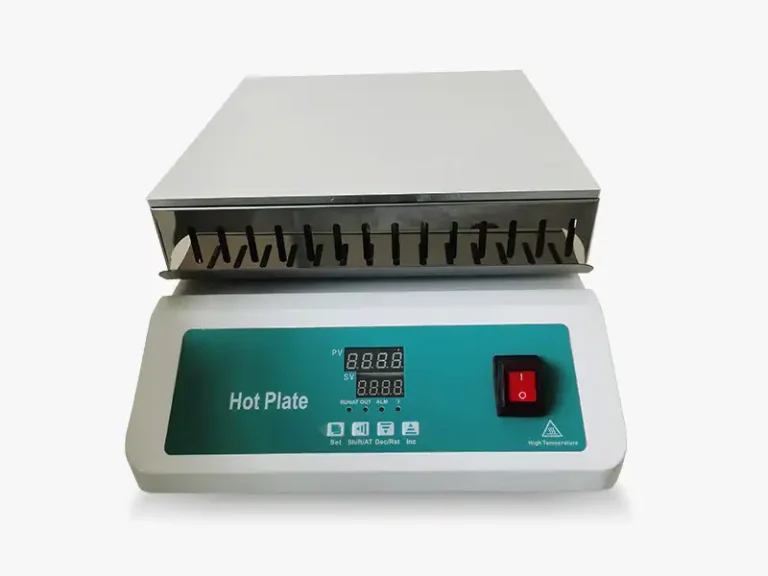

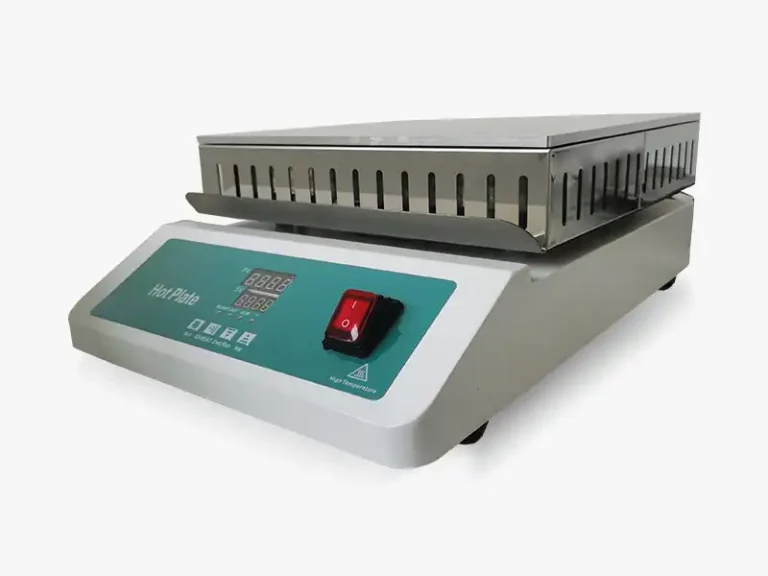

Lab Hot Plates

DECENT Lab Hot Plates are meticulously crafted for experimental heating processes like digestion, boiling, and acid distillation in small to medium labs and chemical production. The energy-efficient surface design caters to batch sample processing needs.

Chat Now
Message
Email

Equipment Construction

• Rapid and even temperature rise, significantly improved uniformity.
• Robust and stable operation.
• Anti-corrosion heating platform and electronic components for an extended service life.
• Multiple anticorrosive heating plate surfaces with aluminum/graphite coating for diverse experiment needs.
• The digital display heating plate enhances user experience with a clear temperature readout.

Technical Parameters



Model DHP-5 DHP-8 DHP-9
DHP-5B DHP-8B DHP-9B
DHP-II-5B DHP-II-8B DHP-II-9B
Performance

Continuous Working Hours

 Continuous
Maximum Surface Temperature（℃） DHP-5, DHP-8, DHP-9: 320℃

DHP-5B, DHP-8B, DHP-9B: 350℃

DHP-II-5B, DHP-II-8B, DHP-II-9B: 400℃
Structure Shell Cold-rolled Steel Plate, Surface Spray-coated
Heating Plate Material Aluminum: DHP-5, DHP-5B, DHP-8, DHP-8B, DHP-9, DHP-9B

Graphite Plate: DHP-II-5B, DHP-II-8B, DHP-II-9B
Heating Power（W） DHP-5: 800

DHP-5B: 1200

DHP-II-5B: 1800

 DHP-8: 1500

DHP-8B: 2400

DHP-II-8B: 3000

 DHP-9: 2200

DHP-9B: 3500

DHP-II-9B: 4500
Controller Continuous Operation Yes
Setting Method Scale: DHP-5, DHP-8, DHP-9

Digital: DHP-5B, DHP-8B, DHP-9B, DHP-II-5B, DHP-II-8B, DHP-II-9B
Operation Function None
Timer None/Digital
Temperature Sensor K Style
Temperature Accuracy DHP-5, DHP-8, DHP-9: ±10%

DHP-5B, DHP-8B, DHP-9B, DHP-II-5B, DHP-II-8B, DHP-II-9B: ±1%
Heating Plate Surface Uniformity DHP-5, DHP-8, DHP-9: ±15%

DHP-5B, DHP-8B, DHP-9B, DHP-II-5B, DHP-II-8B, DHP-II-9B: ±10%
Specification Dimensions(W*L*H) (mm) 340*370*220 420*500*220 470*650*220
Package Size

(W*L*H) (mm)

 DHP-5 / DHP-5B: 520*380*250

DHP-II-5B: 550*410*270

 DHP-8 / DHP-8B: 560*520*250

DHP-II-8B: 600*560*270

 DHP-9 / DHP-9B: 660*620*250

DHP-II-9B: 700*660*270
Heating Plate Size（mm） 300*300 350*450 400*600
Load Bearing 20kgs 30kgs<span “=””> 40kgs<span “=””>
Power Supply（50/60Hz） 220V
Net Weight/Gross Weight(kg) DHP-5 / DHP-5B: 9 /10

DHP-II-5B: 12 /13.5

 DHP-8 / DHP-8B: 11 /12

DHP-II-8B: 19 /20

 DHP-9 / DHP-9B: 15 /17

DHP-II-9B: 28 / 30
