Downdraft Workstation

Key Advantages

High-power self-contained dust collector
Easy-to-clean and replaceable stainless steel table sheet
With microwave pulse cleaning dust net
Easy to operate and durable
Has storage function

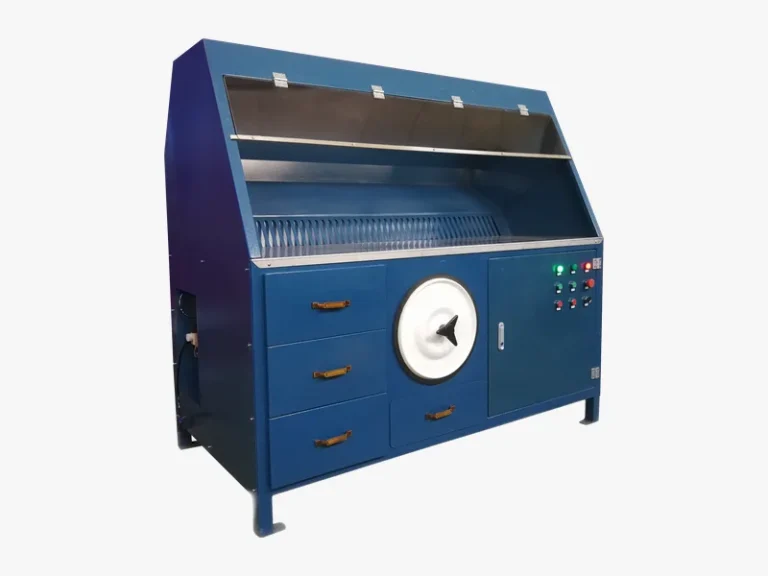

Downdraft Workstation

Downdraft Workstation are workstations with built-in ventilation to capture and filter dust, smoke, and fumes and then return the filtered air to a shop floor which can eliminate costly exhaust and energy loss. Downdraft Workstation can be used in a number of applications, and are available in a variety of sizes.

Qingdao Decent Group developed a self-contained dust collection workstation Downdraft Workstation DSW350 mainly used in mining sampling laboratories. It is primarily designed to collect small dust particles in the work area.

The dust collector in this workbench can effectively remove dust from on and over the table. It therefore protects the laboratory environment and staff safety.

Chat Now

Equipment Construction

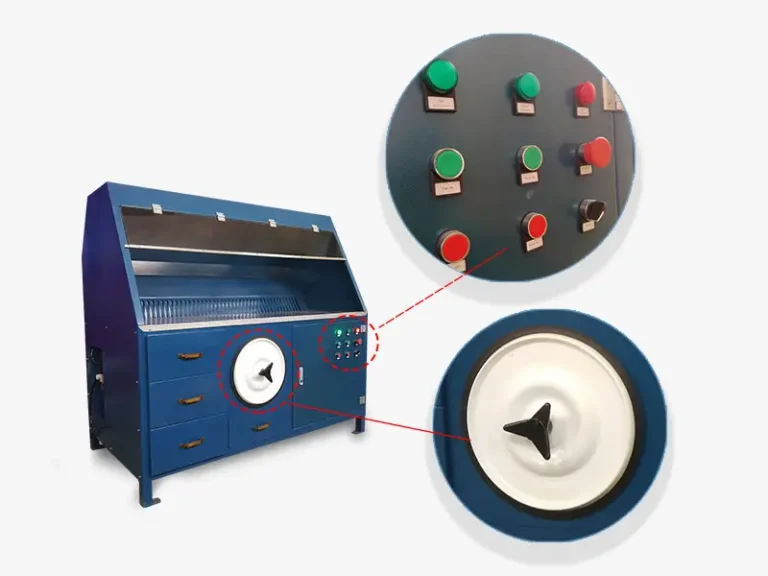

The self-dust collection has a microwave pulse function. Microwave pulses can be used to vibrate and impact the dust collecting net in reverse when it is full of dust, and the dust will be vibrated into the dust collecting drawer.

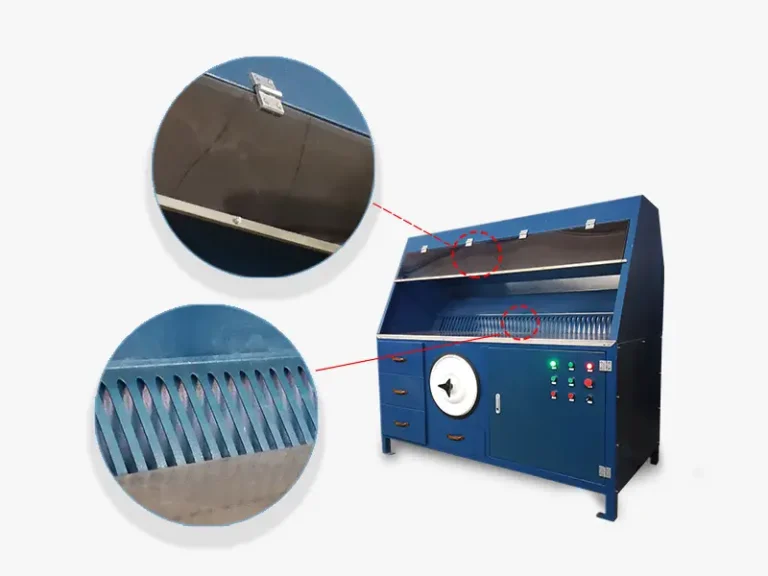

The self-contained workstation is inserted with a layer of stainless steel that is easily removable. It is not prone to wear or corrosion, and it is easy to clean and replace.
It also features three drawers for storing some tools.

Technical Parameters

Voltage	Power	Air volume	Wind pressure	Desktop size	Dimensions
380V/50Hz	2.2kW	3500-4600m3/h	1300-1470Pa	1800mm x 600mm	1800mm x 760mm x 1650mm
