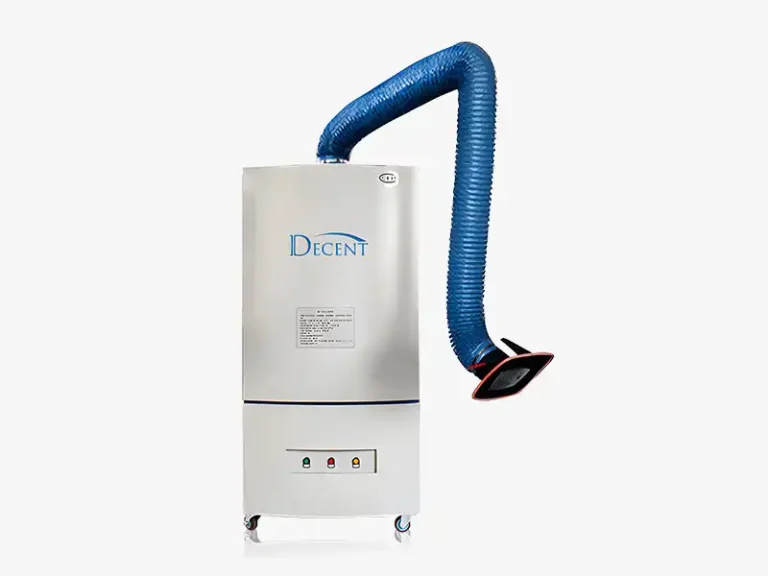

DDC-ZD Series Single Arm Welding Fume Extractor

Key Advantages

Single arm design
Designed to handle significant volumes of fumes and dust
Equipped with high-performance filters
Durable construction
Efficient cleaning

DDC-ZD Series Single Arm Welding Fume Extractor

Tailored for effective smoke and dust extraction in welding, polishing, cutting, and grinding processes.Suitable for a variety of industrial settings where localized air purification is essential.

The DDC-ZD Series Single Arm Welding Fume Extractor, developed by Qingdao Decent Group, is a specialized and environmentally responsible solution for fume and dust management. Engineered for precision and efficiency, this series is designed to tackle fumes and dust from welding, polishing, cutting, and grinding operations. The DDC-ZD Series Single Arm Welding Fume Extractor stands out as a reliable and effective solution for industrial fume and dust control, ensuring a cleaner, safer, and more productive workplace.

Chat Now

Equipment Construction

The extractor operates by generating negative pressure with the fan to inhale fumes and dust.
The captured particles are filtered through a multi-stage filtration system, where dust is effectively separated and clean air is recirculated into the workspace.
Equipped with high-performance filters that efficiently trap dust particles above 0.3 microns, ensuring a high level of purification.
Built to last with robust materials that can withstand the demands of heavy-duty industrial use.
The system maintains optimal filtration efficiency through regular pulse jet cleaning cycles.

Technical Parameters

Series	Airflow (m³/ h)	Power (kW)	Voltage (V)	Filter Cartridge Qty	Filter Size （mm）	Suction Inlet Dia. （mm）	Cleaning Mode of Filter Cartridge	Noise dB (A)	Body Size (mm)
DDC-ZD30	3000	2.2	380	1	φ325×450	φ160	Pulse	72	6506701260
DDC-ZD35	3500	3		1	φ325×450			75	6506701260
DDC-ZD50	5000	5.5		2	φ325×600			75	8509361700
