Angle Cutting Crusher

Key Advantages

Uniform output particle size
High shearing capacity
Reduce powder output
Low maintenance cost
Adapt to various industry applications

Angle Cutting Crusher

Angle cutting crusher is a device that uses the interaction of moving blade and fixed blade to break materials into particles by cutting, impacting, extruding and other methods. It is particularly effective for materials with slight elasticity, high toughness, high fiber content, and a certain degree of softness.

Compared with traditional impact crusher, angle cutting crusher can be used as a powerful tool for crushing pretreatment, and is often used for crushing extraction pretreatment in environmental protection fields such as waste recycling and garbage disposal.

Chat Now

Equipment Construction

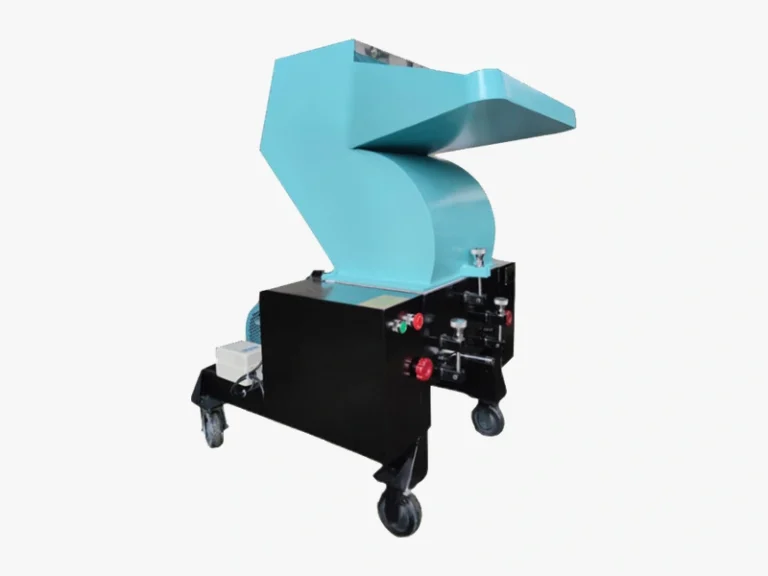

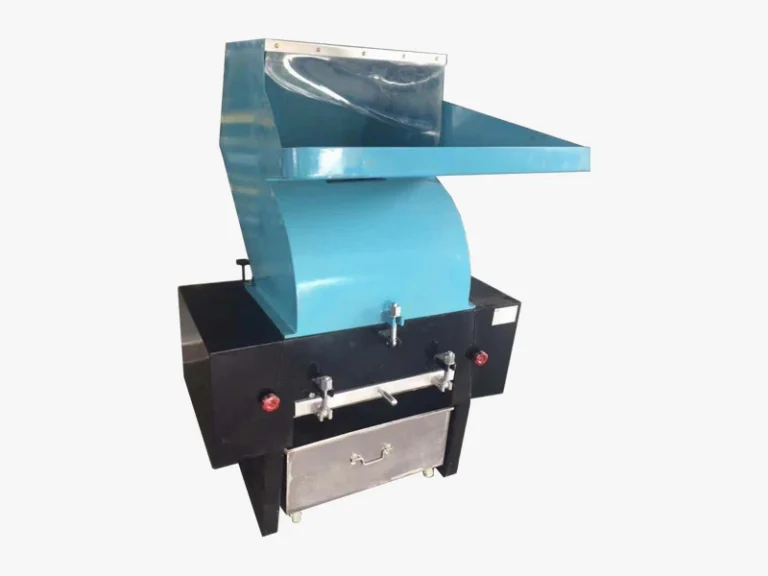

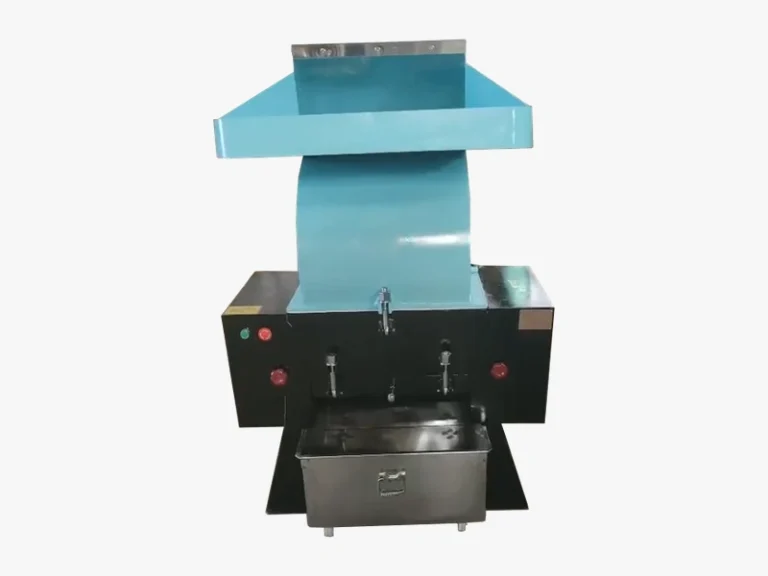

The equipment consists of feed port, crushing chamber, collector and other components.
The material enters the crushing chamber from the feed port, is crushed by the high-speed rotating moving blade and the stationary fixed blade, and after screening, the final particles fall into the collector to complete the entire crushing process.
Different screen sizes provide different final particle sizes of materials.
Equipped with casters, it is more convenient to move.

Technical Parameters

Model No.	Inlet Size	Productivity	Power	Overall Size	Net Weight
DACC150	160x150mm	50-100kg	2.2kW	550x430x930mm	165kg
DACC250	250x200mm	100-200kg	4kW	830x560x1120mm	270kg
DACC300	300x250mm	150-300kg	5.5kW	830x560x1120mm	380kg
DACC380	380x250mm	200-400kg	7.5kW	810x960x1280mm	580kg
DACC500	500x290mm	350-600kg	11kW	1350x1000x1500mm	850kg
DACC600	600x350mm	800-1500kg	15kW	1450x1100x1600mm	950kg
DACC700	700x490mm	1000-2500kg	22kW	1800x1430x1750mm	1500kg
